Quick Details

  • Standard: AISI, ASTM, BS, DIN, GB, JIS
  • Grade: Q235B, Q345B
  • Dimensions: workshop steel structure drawings
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: STL
  • Model Number: factory steel structure drawing / steel structure factory
  • Type: Light
  • Application: Steel Workshop
  • Name: steel structure factory shed drawing
  • Other name: workshop steel structure drawings
  • Certificate: ISO9001:2008
  • Main frame: solid H-shape steel Beam
  • Purlin: C,Z-shape steel purlin
  • Door: Rolling Gate or Sliding door
  • Color: as per your requirement
  • Windows: PVC Steel or Aluminum Alloy
  • Down spout: Round pvc pipe
  • Service life: 50years
 Brand new prefabricated high rise steel building from STL
Product Description

steel structure factory shed drawing

Name

factory steel structure drawing / steel structure factory

Material

Q235B,Q345B

Main frame

 solid H-shape steel Beam

Purlin

C,Z-shapesteel purlin

Roof and wall

a) Color-coated corrugated steel sheet;

b) Rock Wool Sandwich Panels;

c) EPS Sandwich Panels;

d)Glass wool Sandwich Panels

Door

a)Rolling Gate;

b)Sliding door

Window

PVC Steel or Aluminum Alloy

Down spout

Round pvc pipe

Usage

All kinds of industrial workshop, warehouse, supermarket, high-rise building, etc

Service life

 50Years



Drawings&Quotation

We can quote according to your drawings

You can also show us the building size(length,width,height), the arrangements of the windows and doors, the usage, whether fireproof or not and other details you requires. Then we can make exact quotation and design drawings for you.



Installation

In general, we will number the material and send our customer the drawings.If you have other requirements, you can also tell us.

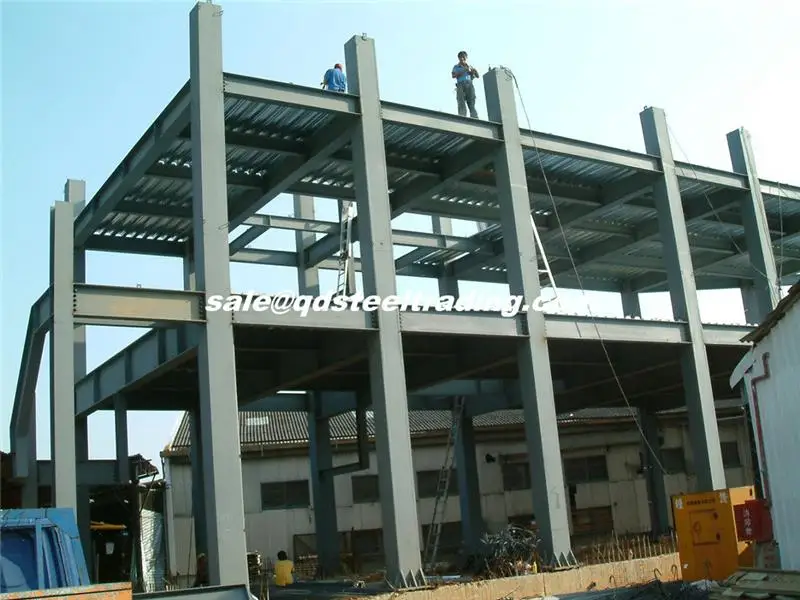

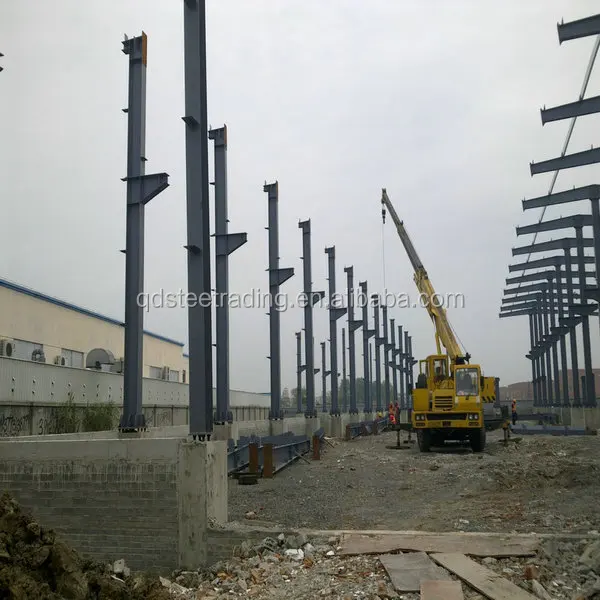

Detailed Images






Our factory

we are  professional manufacture who's devoted to steel structure construction. We provide the whole set of services include making construction designs, producing products and installation.

In order to offer the highest levels of products and service, we have engineers and designers who have more than 15 years of experience join us. In the meantime, the inspection team worked with our workers in the whole manufacturing process to assure the quality...

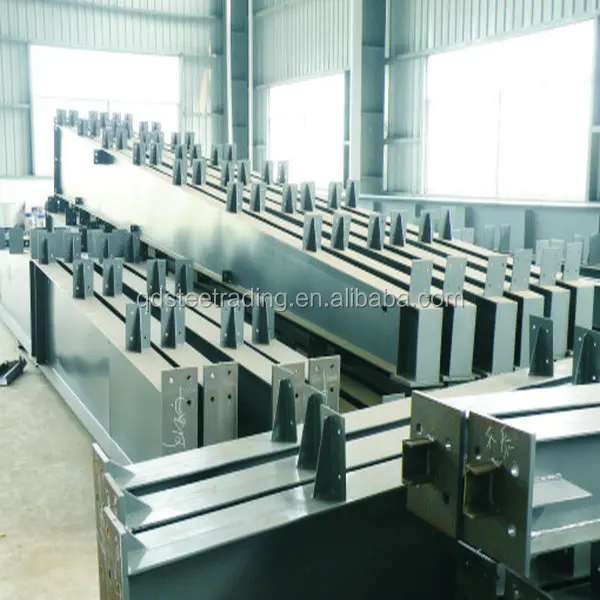

1.Manufacturing steel frame





2. Manufacturing Roofing and wall system



Packaging & Shipping





Certifications

ISO CE

Contact information

plese feel free to contact with us.

whatsapp:8615610557131
