Quick Details

  • Standard: AISI, ASTM, BS, DIN, GB
  • Grade: steel
  • Dimensions: according to client request
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: STL
  • Model Number: STL1530
  • Type: Light
  • Application: Steel Fabricated House
  • material of steel: Q345B or Q235B
  • surface treatment: painting or hot dip galvanised
  • frame: h section beam
  • purlin: C& Z purlin
  • winddow: PVC or aluminum alloy
  • door style: sliding door, rolling up door, folding tip -up door, pvc door
  • roof and wall clading: single corrugated sheet or sandwich panel
  • insulation: PU, EPS, rock wool, glass wool
  • accesseries1: foundation bolt, hight strengthen bolts,self taping nail etc
  • accesseries2: out gutter, down spout

Packaging & Delivery

Packaging Details Main frame packed in 40' OT container, maintenance paced in 40' HQ container
Delivery Time Shipped in 30 days after payment

light steel structure warehouse Detailed specification  :

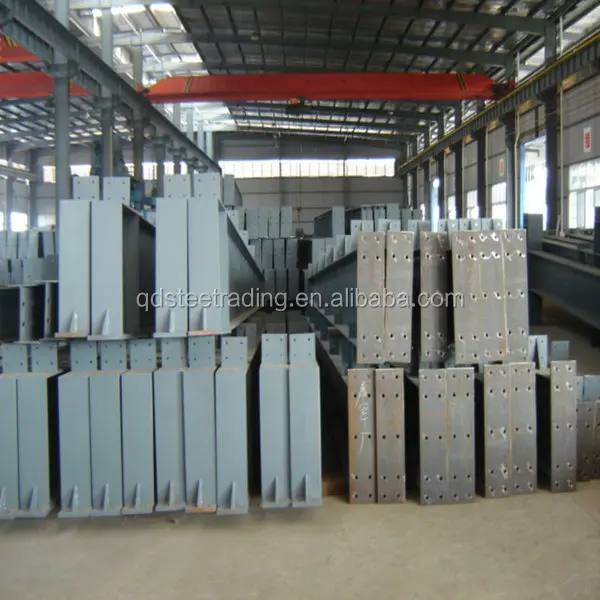

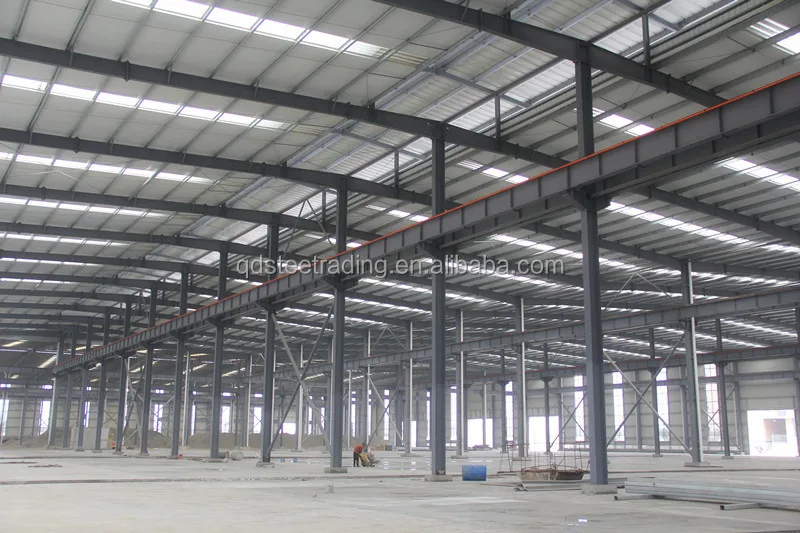

1. The main frame (columns and beams) is made of welded H-style steel or hot rolled steel H section. steel materials: Q345 & Q235;

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high strength  bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. Bracing System: Square Hollow Section and Circular Hollow Section;

6. Surface Treatment: Rust-proof Painting with 2-4 Layers;

7. Span: The max span is 50m between supporting bases.
8. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails. Also we can use rock wool, glass wool, EPS sandwich panels.

9. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type .

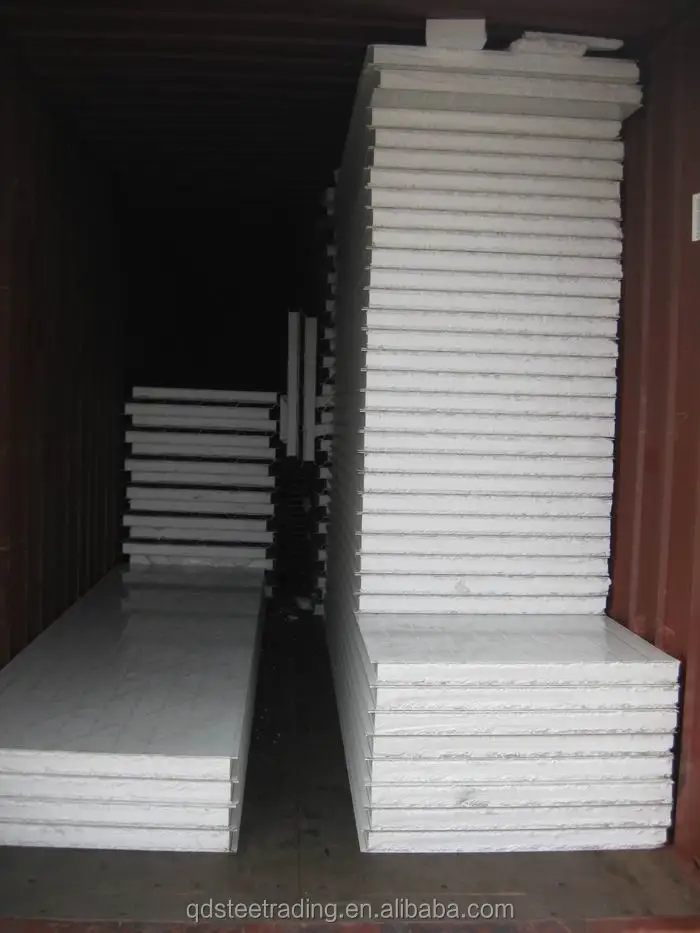

10.packing :main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ



Advantages of the product:



1).Large span for great strength with light deadweight;
2).Short finishing time and low cost;
3).Fire proof and rust proof;
4).Convenient to assemble or disassemble.



Specification:





Design Data

1.live load on roof(KN/M2)

2.wind speed(KM/H)

3.snow load (KG/M2) if have
4.earthquake load if have

5.crane (if have), lift height, lift capacity,

Size

1.width

2.length

3.eave height

4.roof slope

Type

1.single slope OR double slope

2.muti slope OR single span
3.double-span OR Multi-span

4.single floor OR two floors

Intercolumn

5m, or 6m….

Windows &Door

1.quantity

2.size

3.Location

4.PVC or aluminum

Column &Beam

straight cross-section OR Variable cross-section

Roof & Wall Panel

1.colorfull corrugated steel sheet   0.326~0.8mm thick ,YX28-205-820(820mm wide),
2.sandwich panel with EPS,ROCK WOOL,PU etc, insulation thickness around 30 ~300mm, 3.sheet+glass fiber(thick 50mm~200mm)

Purlin

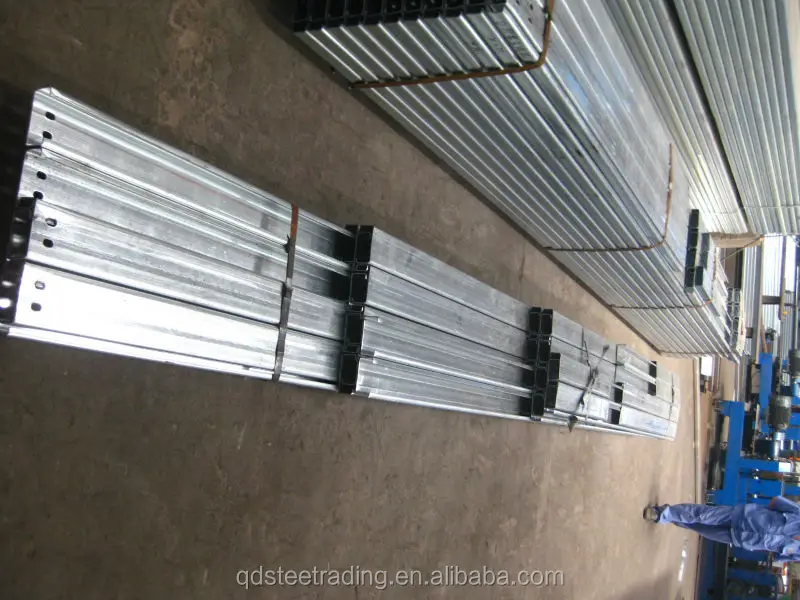

1.C purlin size:120~C320,Z 2.purlin size100~Z200

Accessories

Do you need the skylight belts, Ventilators,down pipe, out gutter etc?

Surface Treatment

Shot blasting with anti rust paint or hot dip galvanize





Professional design and manufacture warehouse light steel structure



1) Simple steel structure warehouse

Main structure

Single span shorter than 18m,lower than 6m

Maintance system

Roof

Colored steel sheet with 50mm glass wool insulation

Wall

Colored steel sheet

Door

Simple steel rolling shutter(within 10m2)

Window

Very few

Usage

Warehouse,workshop

Standard and suitable market

Africa,mid-east,south america(no snow,wind load below 0.4kn/m2)









(2) Standard steel structure warehouse

Main structure

Single span shorter than 24m,lower than 8m

Maintance system

Roof

Colored steel sheet with 50mm glass wool insulation

Wall

Colored steel sheet or 50mm EPS sandwich board

Door

Wind resistance rolling door(within 15m2)

Window

Alu.alloy(can with skylight)

Usage

Warehouse,workshop,shopping mall,exhibition,supper market

Standard and suitable market

 Snow loading below 0.5kn,wind loading below 0.5kn/m2







(3) Cold region(heavy snow)steel structure warehouse

Main structure

Single span shorter than 18m,lower than 6m

Maintance system

Roof

EPS/rock wool/PU sandwich board

Wall

EPS/rock wool/PU sandwich board

Door

PU foamed rolling door

Window

Alu.alloy, Hollow glass

Usage

Warehouse,workshop,shopping mall,exhibition hall,supper market

Standard and suitable market

Cold region such as Norway,Russian,North Canada, Finland, Icelan  Greenland, Sweden,etc.(snow loading below 3kn,wind load below 1KN/M2)









(4)Steel structure warehouse with crane(5T,10T,20T)

Main structure

Single span shorter than 20m,lower than 10m

Maintance system

Roof

Colored steel sheet with 50mm glass wool insulation

Wall

Colored steel sheet or sandwich board

Door

Wind resistance rolling door(within 15m2)

Window

Alu.alloy(can with skylight)

Usage

Warehouse,workshop

Standard and suitable market

Snow 0.5kn,wind load below 0.5kn/m2
